800W Balcony Panel pv Solar 600 watt on-grid system Germany grid tied balcony garden flexible solar system kit

Balcony installation system kit parameters

Product Origin:
China
Color:
Customized
Shipping Port:
XIAMEN
Lead Time:
7-15days

Inquire Now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Detail

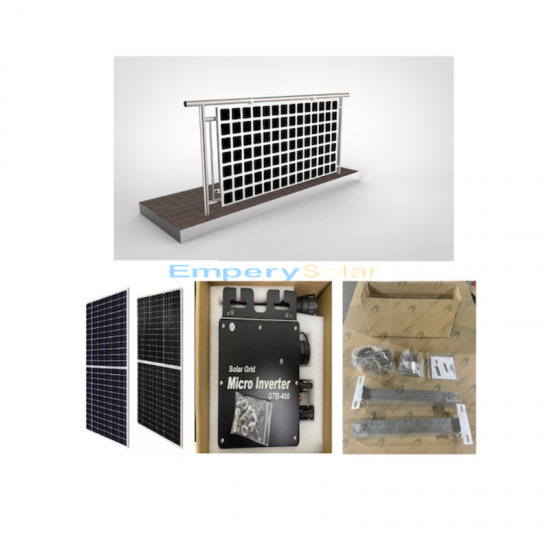

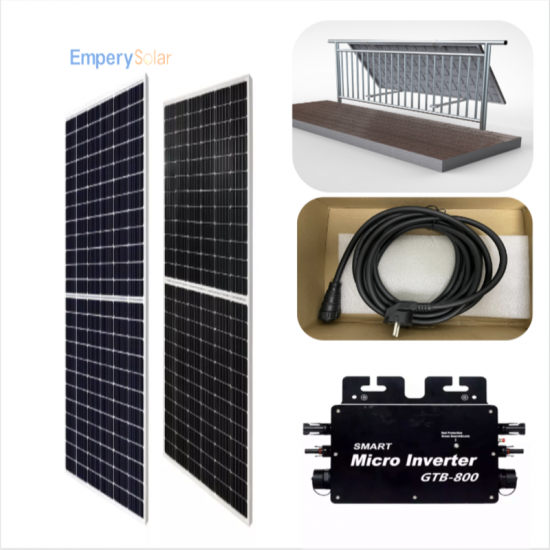

Balcony installation system kit parameters

Product name	Description	Quantity
Grid tied micro inverter	GTB-600 Smart 600W micro inverter	1PCS
Mono solar panel	STC400 Mono 400W solar panel	2PCS
Balcony Mount Bracket	Inclined mounting(vertical mounting optional)	2PCS

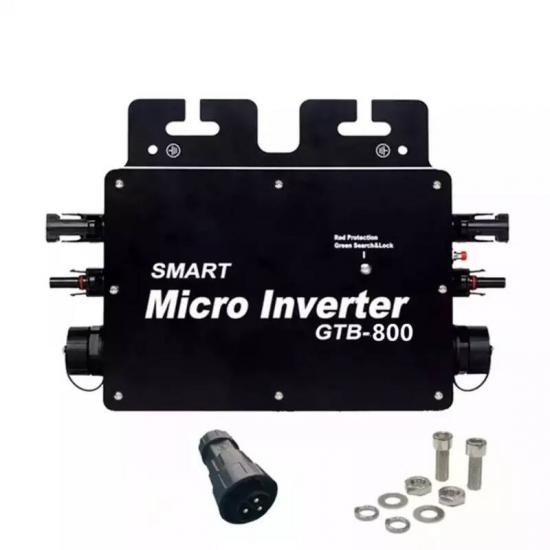

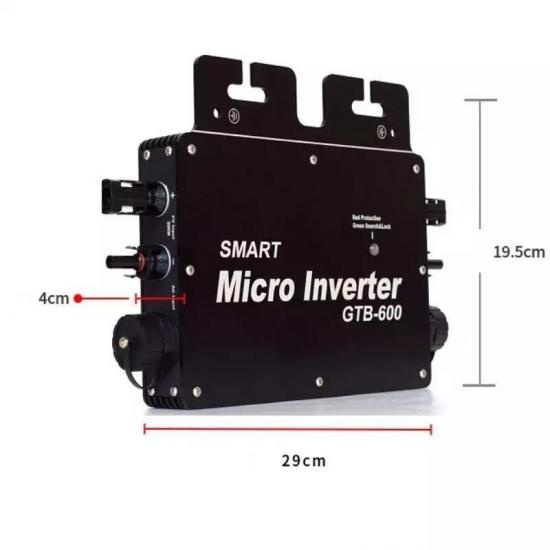

Grid tied micro inverter

Input Voltage:22/50V

Output Voltage:80/160VAC-180/280VAC
Output Current:5/2.6A
Output Frequency:48-51HZ/58-61HZ
Size:280X200X40mm
Inverter Efficiency:95%
Certificate:CE
Warranty:5 Years
Weight:1.62kg
Protection:IP65

Mono-crystalline silicon solar cells

Maximum power at STC(Pmax):400W
Optimum operating voltage(Vmp):37.78V
Optimum operating current(Imp):10.59A
Open-circuit voltage(Voc):43.50V
Short-circuit current(Isc):11.33A
Short-circuit current temperature coefficient:(0.065±0.015)%/℃
Open-circuit voltage temperature coefficient:-(80±10)mV/℃
Peak power temperature coefficient: -(0.5±0.05)%/℃
NOCT (Air 20℃; Sun 0.8kW/m wind 1m/s): 47±2℃
Operating temperature :-40℃ to 85℃
Maximum system voltage :1000V DC
Power tolerance :±3%
Dimension of module: 1723mm×1134mm×35mm
Weight :20.90kg

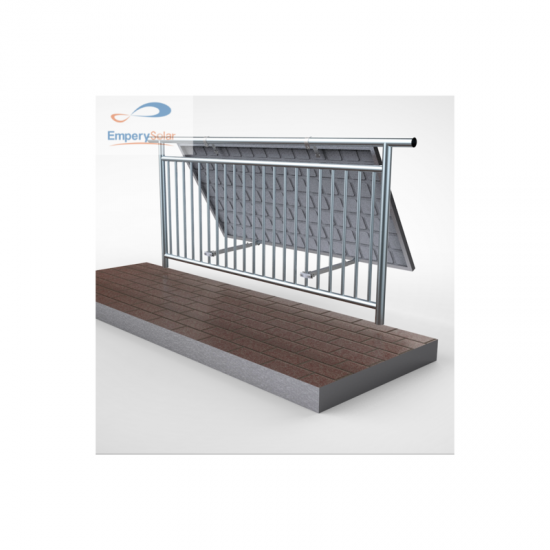

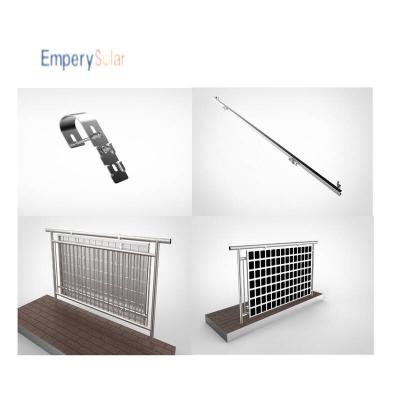

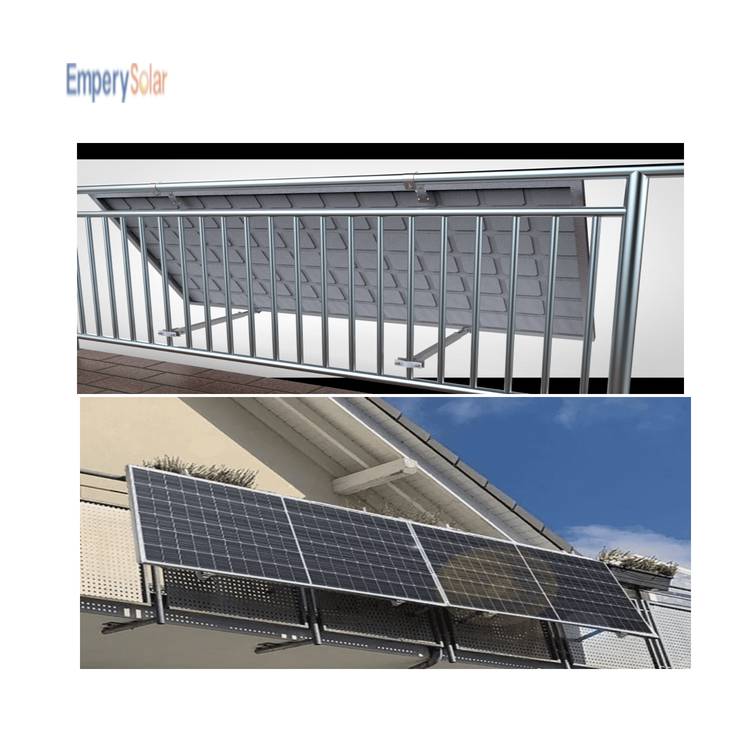

Balcony Mount Bracket(vertical mounting)

Installation Site: Balcony
Panels: Solar panel for any size
Structural materials: Aluminum
Survival wind speed:Up to 50m/s Design
snow pressure: Up to 1.4KN /m2
Inclination:0°-60deg
Certificate: CE TUV UL
Warranty: 15 years
Life: Design Life for 25 years

● Easy Installation

Parts have been high pre-assembly on factory to save your installation time.
● Safety and Reliability
Check and test the structure strictly to against the extreme weather condition.
● Flexibility and Adjustable
Smart design reduce the difficulty of the installation on the most condition.
● 15-Year Warranty
Solmodcell provides a 15-years warranty for the material and structure.

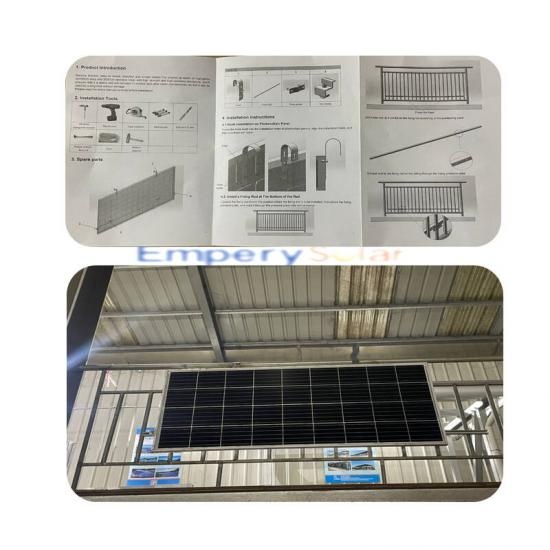

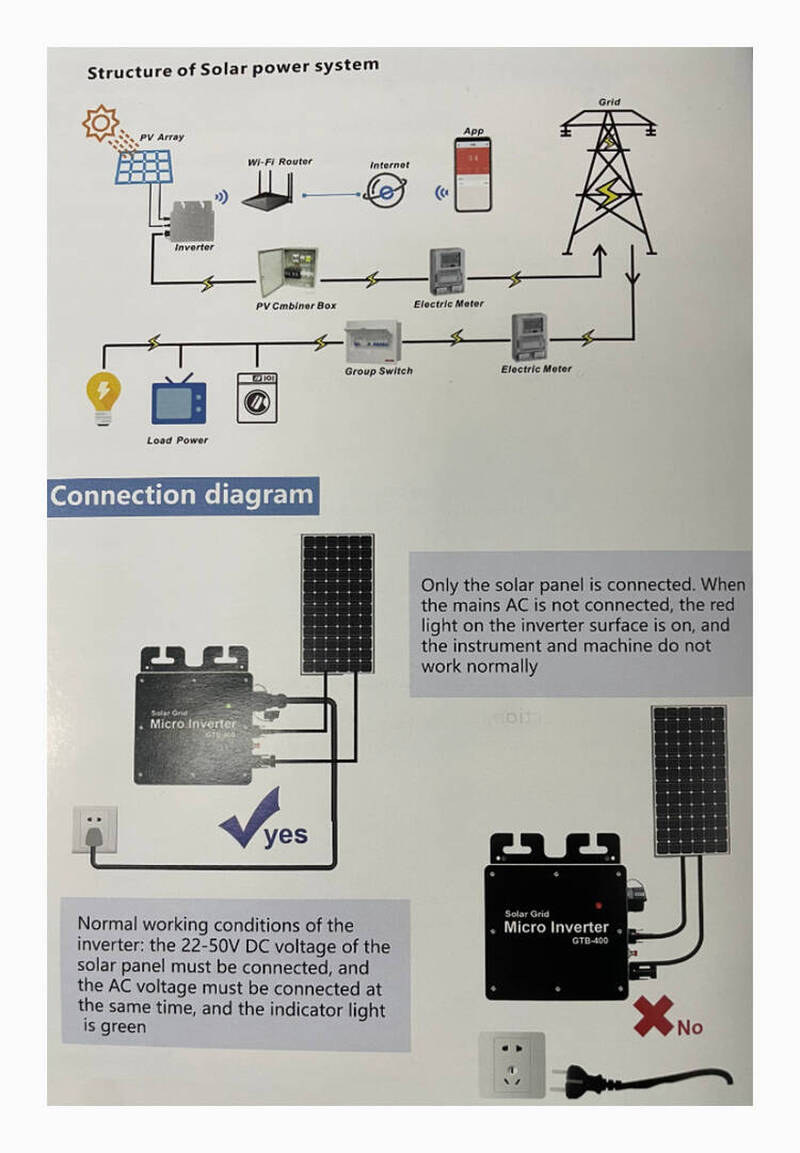

Balcony installation system

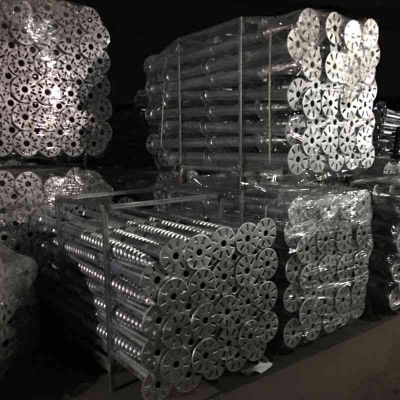

Packing & Shipping

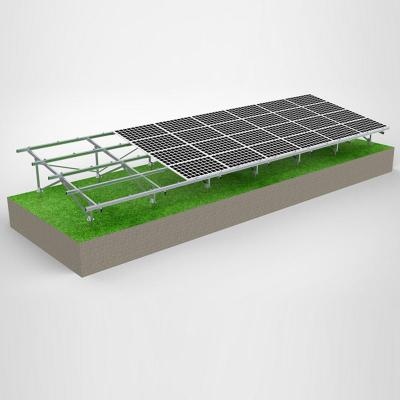

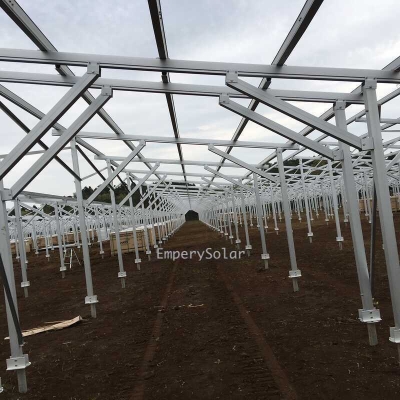

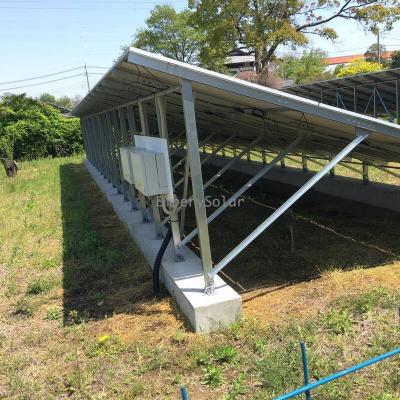

Ground Mounting System
