Commercial Solar Farm Design Solar Power For Agriculture

Commercial Solar Farm Design Solar Power For Agriculture

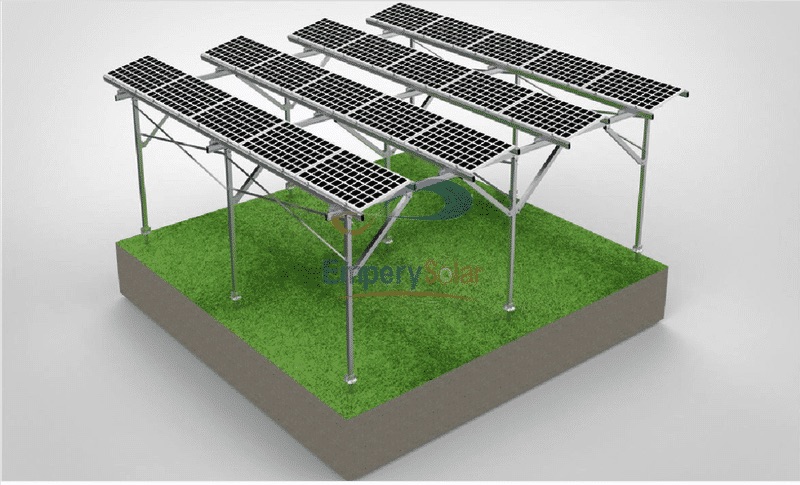

Aluminum Farmland Mounting System,add triangle structure

Solmodcell Farmland Mounting System is applicable to the PV array system on the farmland. Its material, including the hot galvanized steel and anodized aluminum alloy, is all anti-corrosive.You can choose to add triangle structure to make the light gets into the plants.And also according to practical requirements, the system could be planned and customized on the factory to eliminate the welding and cut onsite to save time and money.

PRODUCTS DETAIL

Material:AL6005-T5

Surface:Anodized & Hot galvanized
Anti-corrosive:Excellent
Color:Natural
Brand name:Solmodcell
Model number:EPR-N1
Install site:Open ground
Module orientation:Vertical/Horizontal
Warranty:15 years

TECHNICAL INFORMATION

Install site：Open ground
Tilt Angle：10~60deg
Max Wind Speed：<60m/s
Snow Load：<1.4KN/㎡
Standard：AS/NZS 1170
Material：Aluminum alloy Al6005-T5& Stainless steel 304 & Hot galvanized steel 80um
Anti-corrosive：Anodized & Hot galvanized
Color：Natural or Optional
Warranty：15 years warranty and up 20 years service life

BENEFITS

Easy Installation
Parts have been high pre-assembly to save you much time and reduce installation cost.
Excellent Adaptability
Engineered To High Standard Solmodcell mounting system for farmland is made to the highest standard,safe and strong its designed to Comply with AS/NZS 1170.
Maximum Lifespan
All components are made of qualified aluminum and stainless steel.The high corrosion resistance guarantees the maximum possible lifespan and it is also completely recyclable.
15-Year Warranty
A 15-year warranty sets you free from worrying about maintenance for material and structure.
