solar panel mounting structure system

solar panel mounting structure system

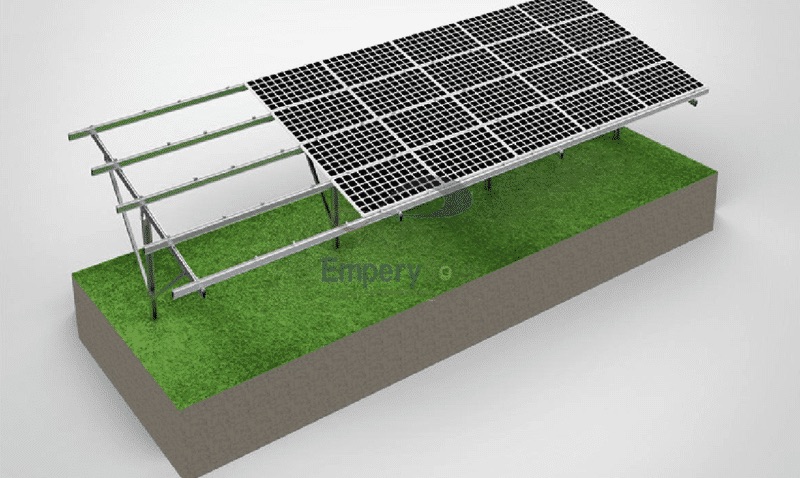

Solmodcell single-pillar mounting system is suitable for open ground PV mounting system. The applicable material is hot galvanized with high corrosion resistance. Single-pillar mounting system have greater mechanical properties and are suitable for harsher environments.

PRODUCTS DETAIL

Material:Al6005-T5&Q235B
Surface:
Anti-corrosive:Yes
Warranty:15 years
Standard: JIS C8955:2011
Brand name:Solmodcell

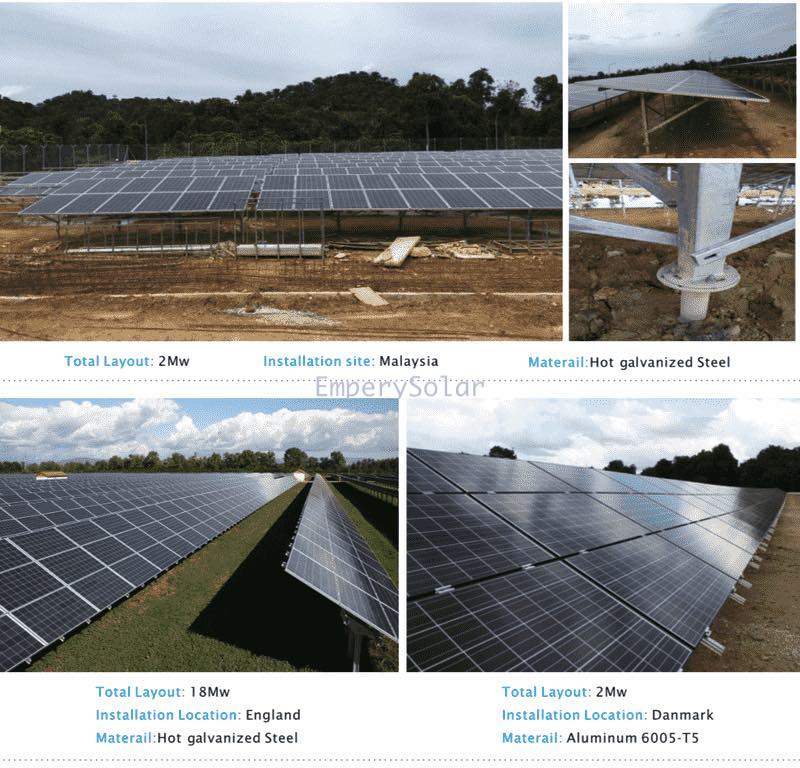

Install site:open ground
Module orientation:Horizontal/Vertical

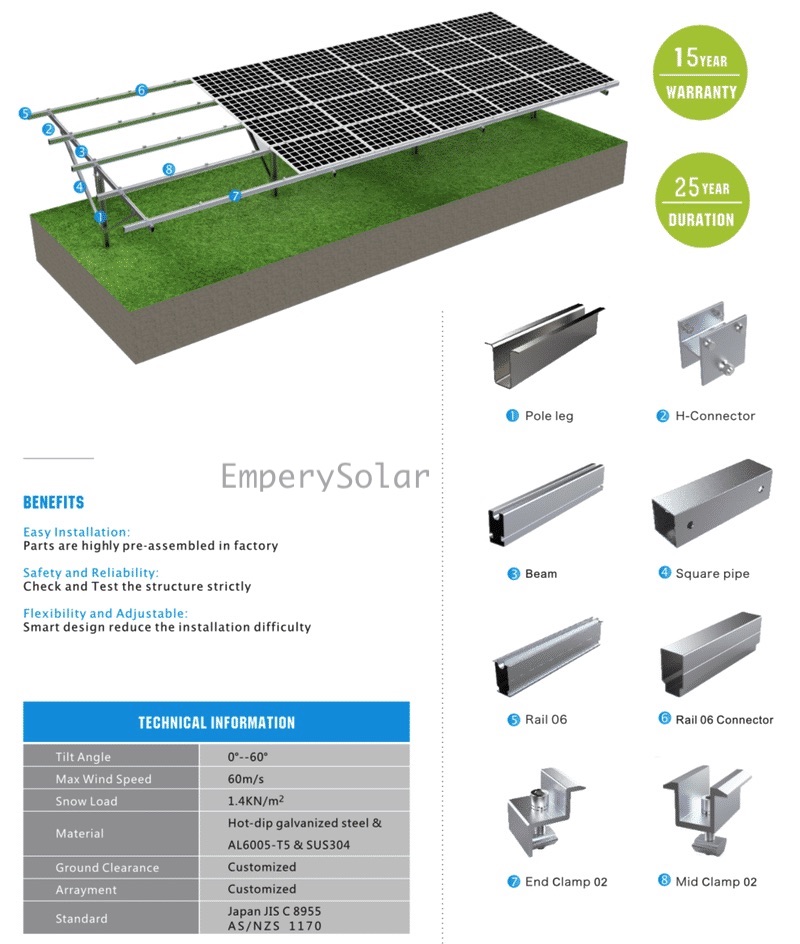

TECHNICAL INFORMATION

Installation Site: Open field
Wind Load: Up to 60m/s
Snow Load: 1.4KN/m
Applicable Module: Framed or Frameless
Module Orientation: Portrait
Material: Al6005-T5&hot-dip galvanized

BENEFITS

● Easy Installation
Parts have been high pre-assembly on factory to save your installation time.
● Safety and Reliability
Check and test the structure strictly to against the extreme weather condition.
● Flexibility and Adjustable
Smart design reduce the difficulty of the installation on the most condition.
● 15-Year Warranty
Solmodcell provides a 15-years warranty for the material and structure.

PACKING & DELIVERY
