Solmodcell Custom Made Farm Security Solar Steel Farmland For Ground Mounting System

Custom made aluminum iron agriculture solar farmland structure

Aluminum Farmland Structure

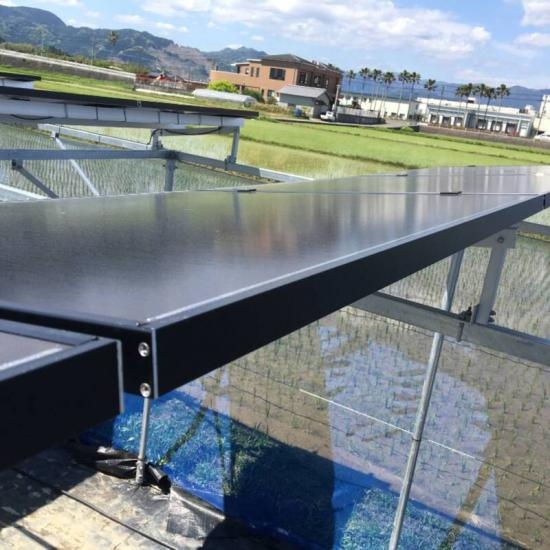

Solmodcell Farmland Mounting System is applicable to the PV array system on the farmland. Its material, including the hot galvanized steel and anodized aluminum alloy, is all anti-corrosive. According to practical requirements, the system could be planned and customized on the factory to eliminate the welding and cut onsite to save time and money.

PRODUCTS DETAIL

Material:Aluminum
Surface:Hot Dipped Galvanized
Anti-corrosive:Anodized & Hot galvanized
Warranty:15 years warranty
Standard:AS/NZS 1170
Color:Natural
Brand name:Solmodcell
Install site:Open ground
Module orientation:Horizontal/Vertical

TECHNICAL INFORMATION

Install site：Open ground
Tilt Angle：10~60deg
Max Wind Speed：<60m/s
Snow Load：<1.4KN/㎡
Standard：AS/NZS 1170
Material：Aluminum alloy Al6005-T5& Stainless steel 304 & Hot galvanized steel 80um
Anti-corrosive：Anodized & Hot galvanized
Color：Natural or Optional
Warranty：15 years warranty and up 20 years service life

BENEFITS

Easy Installation
Parts have been high pre-assembly to save you much time and reduce installation cost.
Excellent Adaptability
Engineered To High Standard Solmodcell mounting system for farmland is made to the highest standard,safe and strong its designed to Comply with AS/NZS 1170.
Maximum Lifespan
All components are made of qualified aluminum and stainless steel.The high corrosion resistance guarantees the maximum possible lifespan and it is also completely recyclable.
15-Year Warranty
A 15-year warranty sets you free from worrying about maintenance for material and structure.
